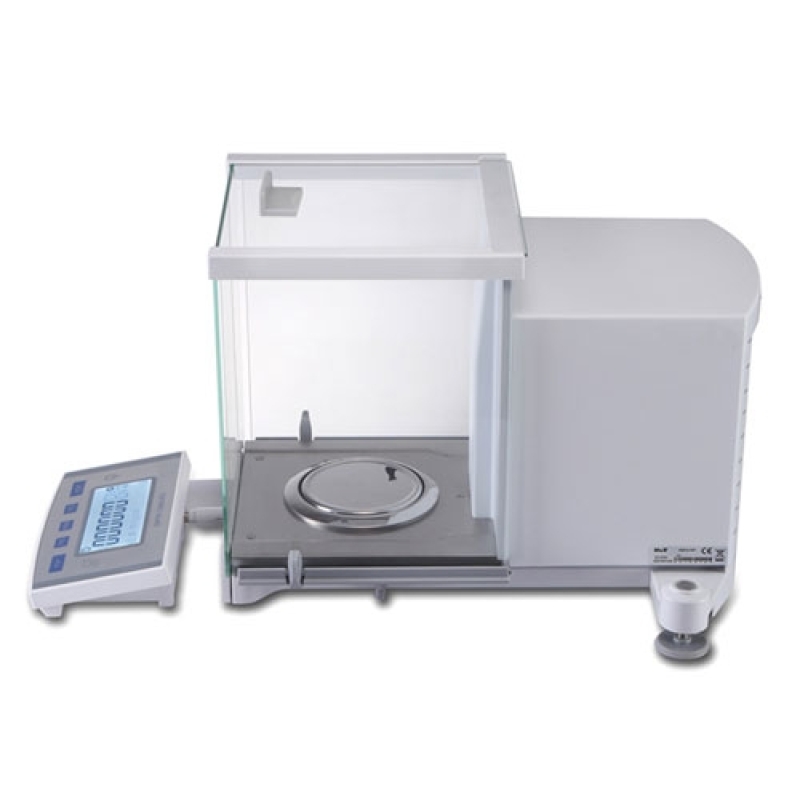

Analytical balance

Main features:
  • Rear type electromagnetic force sensor.
  • All transparent glass windshield, samples can be seen entirely and clearly.
  • Standard RS232 communication port, realize the communication between data and computer, printer or other device.
  • Detachable LCD display, to avoid the balance shaking and vibrating when users press the buttons.
  • Select the below hook weighing device.
  • Internal weights one key calibration.
  • Select thermal printer.

Filling weighing function
Percentage weighing function
Count weighing function
Bottom weighing function



ES-E Series Electronic Analytical Balance main technical parameters


Model Number ES1035A ES1055A ES1085A ES2035A ES2055A ES2085A
Max. Capacity (g) 120/31 120/51 120/81 210/30 210/51 210/81
Calibration Way Internal Calibration
Readability (mg) 0.1mg/0.01mg
Repeatability (mg) ±0.1mg/±0.05mg
Linearity Error (mg) ±0.1mg/±0.05mg
Operational Temperature Range (℃) 10~30
Operational Moisture Range (RH) 20-85%相对(非冷凝)
Response Time (Average value) (s) 2.5/15
Pan Diameter (mm) Φ90
External Dimension (L*W*H mm) 470*310*320
Preheat Time (minute) 20-30
Baud Rate Options 300、600、1200、2400、4800、9600
Display Detachable LCD display
