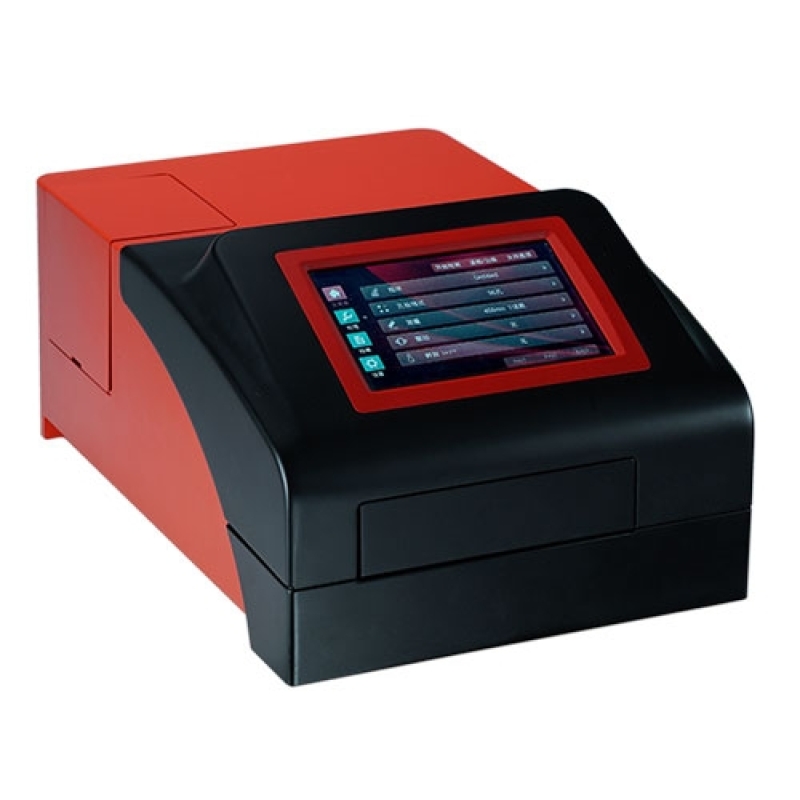

ELISA

Features:

· Wide wavelength range of 340nm to 850nm
· Fast reading of both 96-well and 384-well microplates
· Shaking and incubation from RT+4℃ to 50℃ for temperature critical assays
· Big 7' colorful touch screen for intuitive operation
· Easy but powerful software with its logical workflow for universal usability
· High-quality photodetector from Hamamastu
· USB port for easy data transfer

Scientific design of optical system to ensure the accurate measuring results

The optimum design and the verification of the optical path and circuit, meet the wide detection range from 340-850 mm wavelength.
The detection results of each band are accurate and stable, applicable to a variety of rigorous applications.

The stable and reliable performance comes from the built-in self-diagnostic program of the machine.
In the start-up stage, the built-in self-diagnostic program detects the position of the microplate, and the stability of optical components.


Large colorful LCD touch screen for easy use
7 inch colorful capacitive touch screen, can display more detection data.
The large size icons realizes easy touch operation and reduces disoperation as much as possible.
There are three shortcuts to start the customized protocols with one-button start.

Powerful internal software
Functions include:
  • Main: protocol, plate format, measurement, shaking, incubation
  • Process: plate layout, preprocessing, calculation, interpretation, quality control
  • Results: raw data, calculated results, calibration data, quality control, results in list format
  • Settings: system, filters, printer, startup.

Working principle (XY axis scan)




Applications:

▷ Immunoassays (ELISA)
▷ Protein assays
▷ Endotoxins
▷ Cytotoxicity and proliferation assays
▷ Enzyme assays
▷ Growth curves

Specifications:


Model P-800
Plate Type 96-well and 384-well plates,max height:15.3mm
Light Source Quartz-halogen lamp
Detector Type Photo detector
Wavelength Selection Filters
Wavelength Range 340nm to 850nm
Filters 8-position filter wheel;
Three filters installed: 405nm,450nm,and 620nm.
Optional filters (nm)

340,375,414,492,520,530,540,550,560,
570,595,630,650,690,740,750,820

Linearity 0-3 Abs,-/+2% at 405nm,96-well plate
Read-out Range 0 to 6Abs
Resolution 0.001Abs
Accuracy 士1% (0-3 Abs) or 士0.003 Abs,whichever is greater at 405nm

Precision CV = 0.2%  (0.3-3 Abs) at 405nm
Shaking Linear shaking with three modes :slow,medium,fast
Measurement Speed 7 seconds,96-well plate,fast mode
13 seconds,96-well plate,normal mode
13 seconds,384-well plate,fast mode
34 seconds,384-well plate,normal mode
Display 7' colorful touch screen
Interface USB port for data transfer,USB port for printer
Size( LXWXH ) 410x290x210mm
Power supply 100-240V(50/60HZ)
