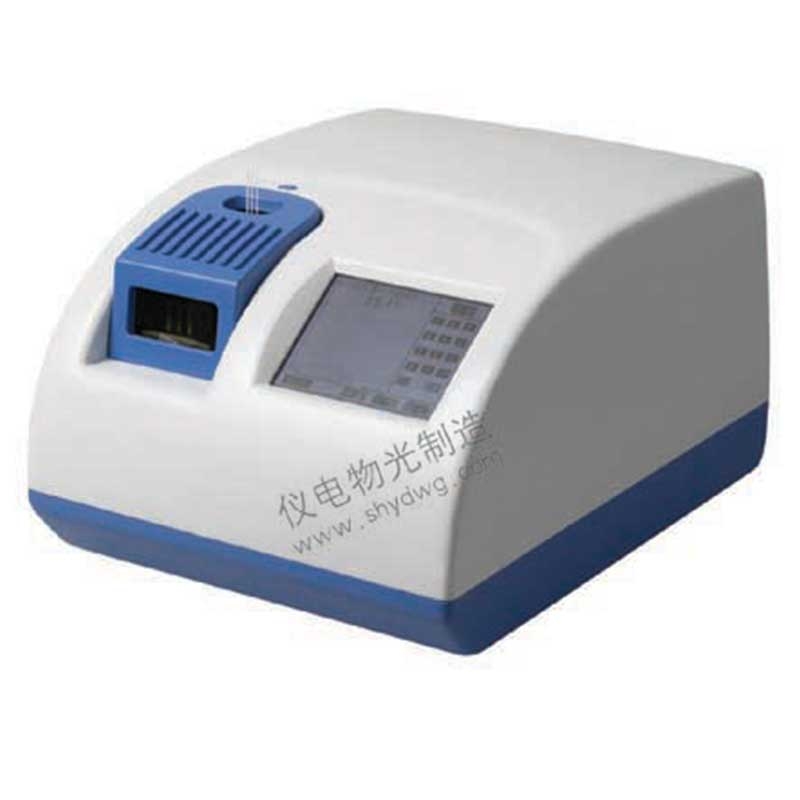

Melting-Point Apparatus

Characteristics:
Measurement of melting point is one of the important methods of measurement of purity;
To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances;
Together with Visual window and Photoelectric test;
Use PID to control the temperature;
It can measure three samples at the same time and calculate average value of initial and final melting points automatically;
Touch Screen
USB and RS232

Specifications:
Melting-point measurement range: room temperature -320
Minimum digital display: 0.1
Size of the capillary: φ1.4mm(outside diameter)
φ1.0mm(inside diameter), 100mm
Loading height of the sample: 3mm-5mm
Linear heating-up rate: 1.0  /min 0.2 /min1.5/min3.0/min
Accuracy: Within the range of less than 200:±0.5
in the range of 200-320:±0.8
Deviation of linear heating rate: no more than 10% (setting value)
