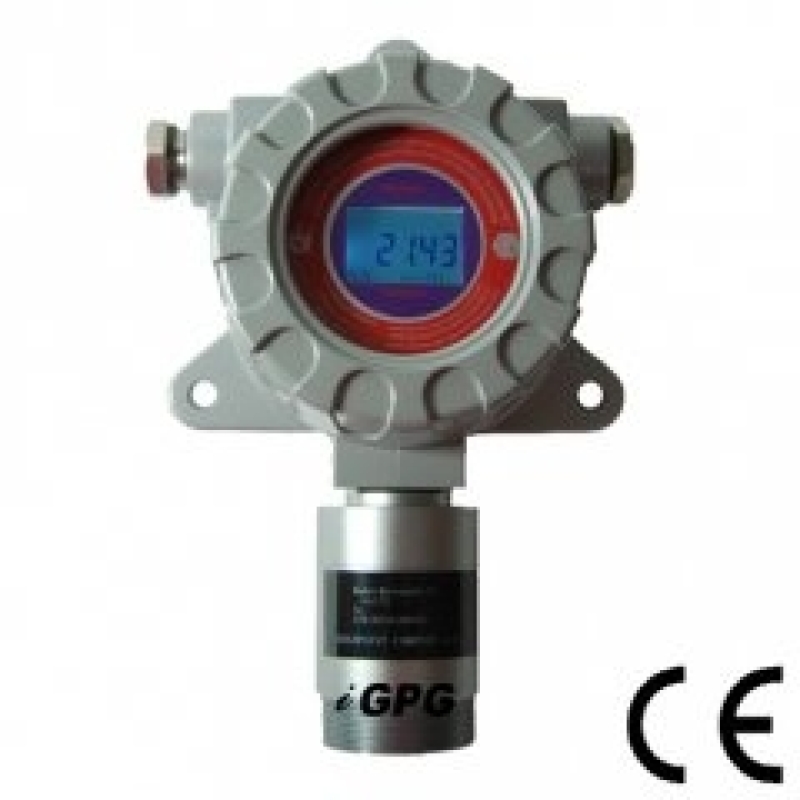

GC System

Technical Parameter:

LCD display mode: ppm, %VOL%LEL
Precision: ±3%F.S.
Working temperature: -20~60
Shell materials: aluminum alloy with explosion-proof
Size: 125*106*153
Explosion-proof grade: Ex d IIC T6
Protection grade: IP66
The integrated equipment weighs: 1.8Kg
Environment humidity: 10~95% RH non-gel;can reach 0-99%RH for Special requirement
Analog signal output: Three wires linear output 4-20mA
Digital signal output: RS485 Bus digital signal output
Contacts output: Passive contacts(stem node)output or 5V,24V power output can be chosen
Alarm mode: relay output (contacts output), on-site sound and light alarm (optional)
Power: 24VDC(11~30VDC)
Active current: 8mA(Poison gas and oxygen)30mA(Burning gas and infrared sensors)
Volume: 120 decibels
Intrinsically-safe grade: Ex ia IIC T6
