Model |

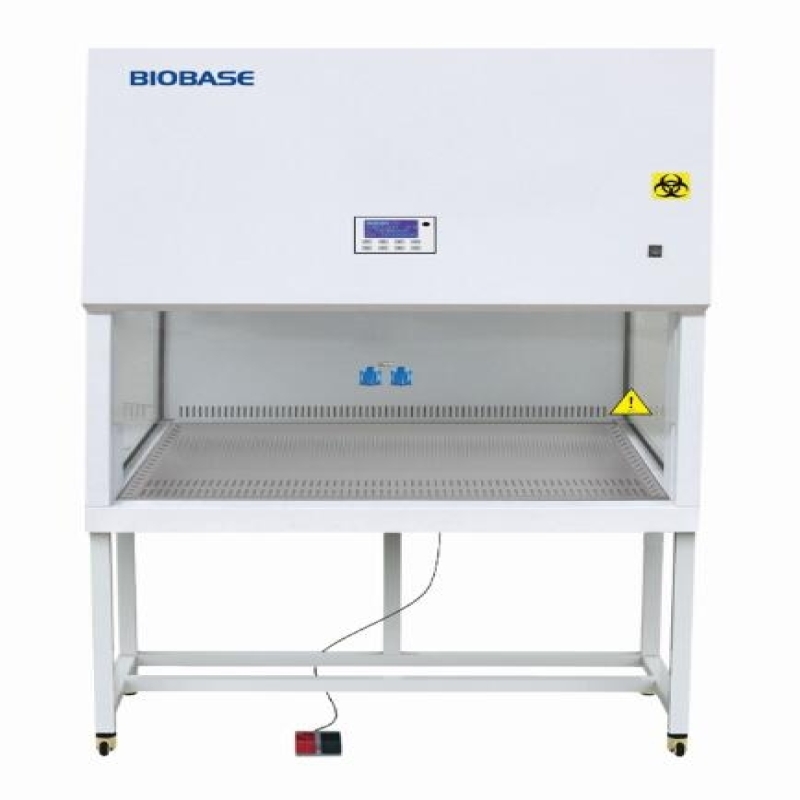

BSC-1200ⅡA2-Z |
Internal size(W*D*H) |
1100*540*600mm |
External size(W*D*H) |
1200*750*2200mm |
Tested Opening |
Safety height:200mm(8”) |
Working Opening |
400mm(16”) |
Inflow Velocity |
0.53 ±0.025 m/s |
Down Flow Velocity |
0.33 ±0.025 m/s |
HEPA Filter |
Two ,99.999% efficiency at 0.3 μm.Filter life indicator. |
Front Window |
Moterized.5mm toughened glass.Anti UV. |
Two Sides Window |
5mm toughened glass |
Noise |
EN12469≤58dB/NSF49≤ 61 dB |
UV lamp |
30 W*1 |
UV timer,UV life indicator, Emission of 253.7nanometers for most efficient decontamination |
Fluorescent Lamp |
21 W*2 |
Illumination |
≥1000 lux |
Consumption |
760 W |
Waterproof Socket |
Two ; total load of two sokets : 500W |
Display |
LCD Display:exhaust filter and downflow filter pressure,filter and UV lamp working time, |
inflow and downflow velocity, |
filter life,humidity and temperature,system working time etc. |
Control Sys tem |
Microprocessor |
Airflow System: |
70% air recirculation, 30% air exhaust |
Visual and audio alarm |
Filter replacement,window over height ,abnormal airflow velocity |
Material |
Work table:Stainless steel; |
Two sides:Toughened glass; |
Body:Cold-rolled steel with anti-bacteria powder coating |
Work surface height |
750 mm |
Caster |
Universal caster with brake and leveling feet |
Power Supply |
AC220V± 10%,50/60HZ;110V±10%,60HZ |
Standard Configuration |
Fluorescent lamp,UV lamp *2,Base stand,Remote control ,Foot switch ,Drain valve, |
Water proof sokets*2 |
Optional accessory |
Water and gas tap |
Gross weight |
200 kg |
Package Size(W*D*H) |
1390*1000*1650mm |
