Model |
|

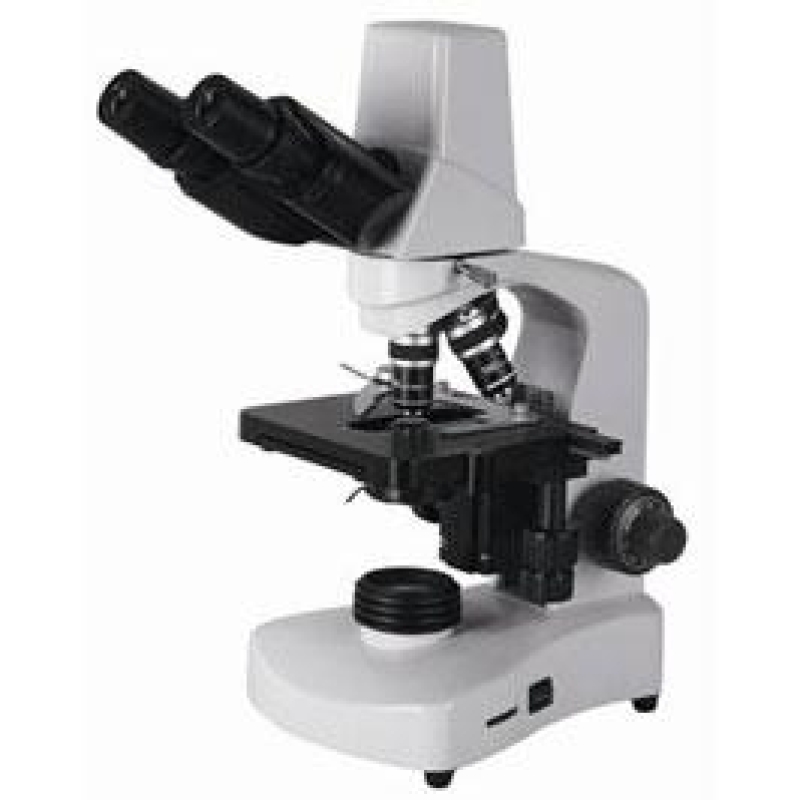

DN-117M |
Viewing Head |
Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm |
● |
Camera |
Valid Pixel |
1280×1024(1.3M Pixel) |
● |
System |
Output Mode |
USB2.0 |
● |
|
Operation System |
WINDOWS 2000 / XP/ VISTA |
● |
|
Software |
ScopeImage 9.0 |
● |
|
Range of Viewing Field |
90% |
● |
Eyepiece |
WF10×/ 18 |
● |
P16×/ 11 |
○ |
Nosepiece |
Backward Quadruple Nosepiece |
● |
Objective |
Achromatic Objective 4×、10×、40×、100× |
● |
Stage |
Double Layers Mechanical Stage 132×142mm/ 75×40mm |
● |
Condenser |
Abbe NA1.20 with Iris Diaphragm & Fliter |
● |
Focusing |
Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm |
● |
Illumination |
LED 3W,Brightness Adjustable |
● |
Halogen Lamp 6V/ 20W,Brightness Adjustable |
○ |
Phase |
|
○ |
Contrast Kit |
Dark-Field Attachment |
|
○ |
Polarization Attachment |
|
○ |
