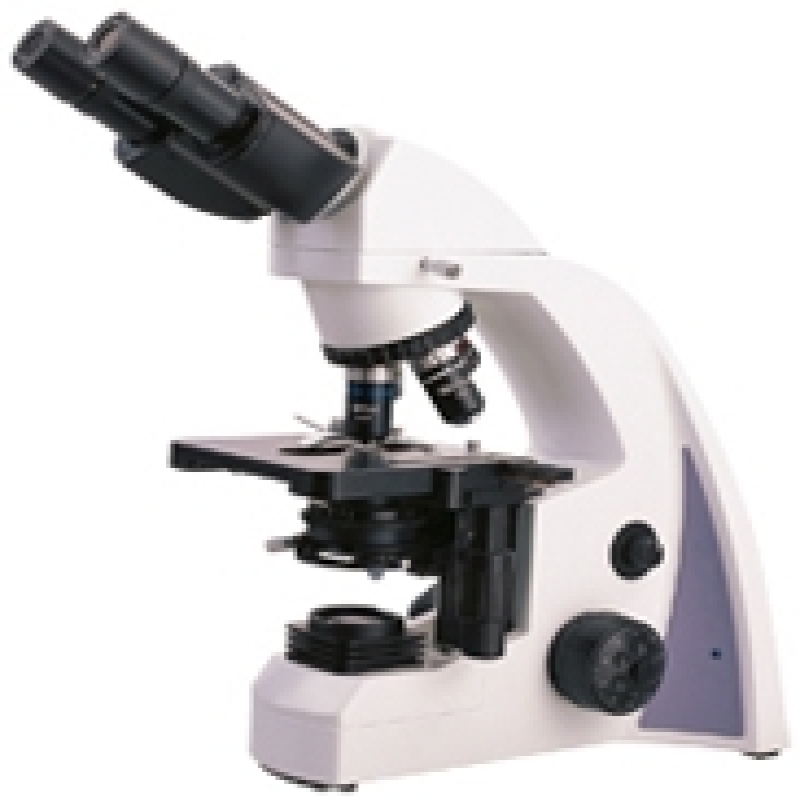

Microscope

Features:
  • Extra Wide Field Eyepiece EW10X/20 with Diopter Adjustment as Optional
  • Comfortable Observation with Eyepoint and interpupillary adjustable
  • Sliding-in Centerable Condense Adjustable
  • Handle for easy carrying
  • Lamp Replacement by Direct Removing Housing

Specification
Model N-300M
Viewing Head Compensation Free binocular head, 30° inclined, Interpupillary 48-75mm
Compensation Free trinocular head, 30° inclined, Interpupillary 48-75mm
Eyepiece Wide Field Eyepiece WF 10×/18
Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment
Objective Infinitive Semi-plan Achromatic Objectives 4×, 10×, 40×, 100×
Infinitive Plan Achromatic Objectives 4×, 10×, 40×, 100×
Nosepiece Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140mm×140mm/
75mm×50mm
Condenser Sliding-in centerable condenser NA1.25
Focusing Coaxial Coarse & Fine Adjustment, Moving Range 20mm
Illumination S-LED Illumination, Brightness Adjustable
6V/ 20W Halogen Lamp, Brightness Adjustable
Phase Contrast Kit
Dark Field Attachment
Note: ●Standard Outfit, ○Optional
